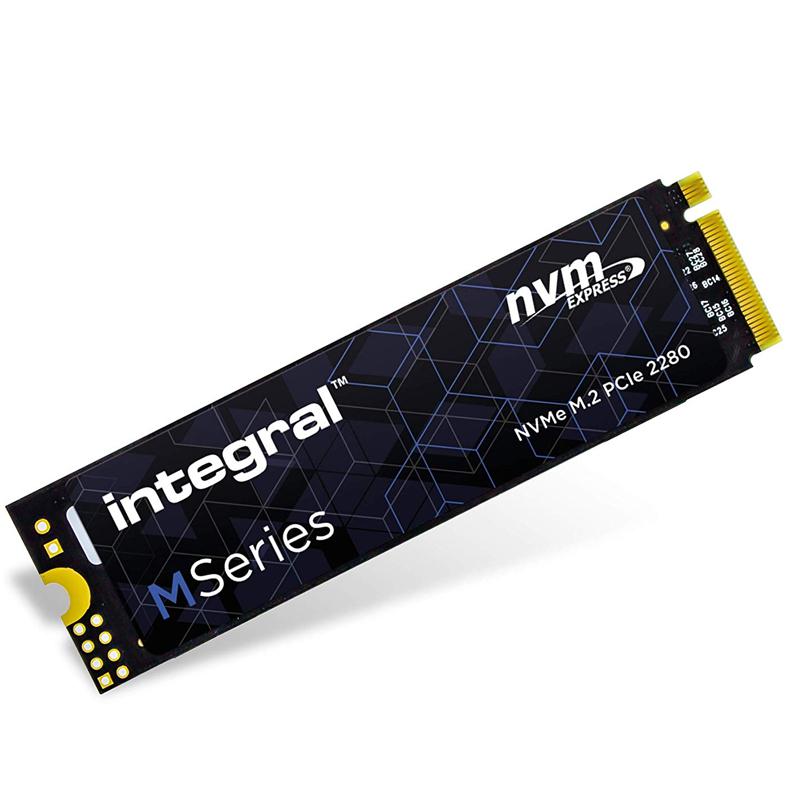

Integral 256GB M Series M.2 2280 PCIE NVMe Internal SSD - 2000MB/s

The M.2 PCIe NVMe SSDs are up to four times faster in performance when compared to SATA SSDs and are compatible with most computing hardware and software that support the NVME standard, including small form factor machines (e.g Intel NUC), Ultrabooks and enthusiast desktops. Choose the Inetgral M Series M.2 PCIe NVMe SSD to break through the 6Gbps SATA limitation for your performance needs. Specifically engineered to compliment high-specification machines and provide responsive gaming and multimedia performance.

Key Benefits:

• A well-balanced, high performance PCIe Gen 3x4 interface conforming to the NVMe 1.2 standard. Achieving up to 2000MB/s* read and 1600MB/s* write, Integral M.2 PCIe SSDs break through the 6Gbps SATA limitation that takes computing performance to the next level.
• Random read IOPS up to 188K
• Random write IOPS up to 156K
• Gamers will benefit from faster loading times, exceptional performance and a more enjoyable gaming experience
• Power-users, content editors, graphic designers and general multi-taskers will all benefit from a super-responsive system and fast boot
• Improved video workflow when used in: Digital film recording, live broadcast, video editing, colour correction and visual effects
• Supports SSD enhanced set of S.M.A.R.T. attributes
• Performance up to four times faster than a conventional SATA SSD
• No mechanical parts
- Highest reliability; less likely to fail than HDD
- Extreme shock resistance
- Zero noise
- No heat generation
• Low power consumption - improved battery life on laptops/netbooks

Product Features

- PCIe Gen3x4
- Compliant with PCI Express Base Specification Rev 3.1
- Compliant with NVMe 1.2
- Non-volatile Flash Memory for outstanding data retention
- Ultra-efficient Block Management and Wear Levelling
- Supports S.M.A.R.T. - Self-Monitoring, Analysis and Reporting Technology
- 3 Year Warranty

Specification

Controller Technology: Silicon Motion SM2263XT
NAND: 3D TLC
Form Factor: M.2 2280
Interface: PCIe Gen 3x4
Compliance: Compliant with PCI Express Base, Specification Rev 3.1, NVMe 1.2
Sequential Perfomance up to:

128GB = READ 1800MB/s WRITE 600MB/s

256GB = READ 2000MB/s WRITE 1200MB/s

512GB = READ 2000MB/s WRITE 1600MB/s
Random Performance up to:

128GB = READ 110K I0PS, WRITE 151K I0PS

256GB = READ 179K I0PS, WRITE 140K I0PS

512GB = READ 188K I0PS, WRITE 156K I0PS

(Please click for full Spec)

Dimensions: LWH 80 x 22 x 2.25mm
Weight: 10g
